3 Station Thermoforming Forming Machine

Ask Lasest Price
Brand Name :	ALLEPACK
Model Number :	XG-A
Certification :	CE,ISO
Payment Terms :	T/T,L/C
Supply Ability :	USD140000/Set
Delivery Time :	35 days

Add to Cart

Product Details
Company Profile

3 Station Thermoforming Forming Machine

Automatic positive and negative 3 station thermoforming technology forming Machine,XG-A is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.

Technical Parameter

Parameter		MFC 7660(mode No.)
Sheet width (mm)		500-800
Sheet thickness (mm)		0.2-1.5
Max.dia.of sheet roll (mm)		800
Forming mold stroke (mm)		(Up ) 140,(down) 140
Mold cutting force(ton)		45
Max.forming area (mm²)		760×600
Min.forming area (mm²)		500×460
Forming mold width (mm)		500-760
Forming mold length (mm)		460-600
Max.forming depth/height (mm)		125 / 70
Cutting mold stroke(mm)		up mold:80, down mold:140
Max.cutting area (mm²)		760×600
Cutting force(ton)		45

Product Application

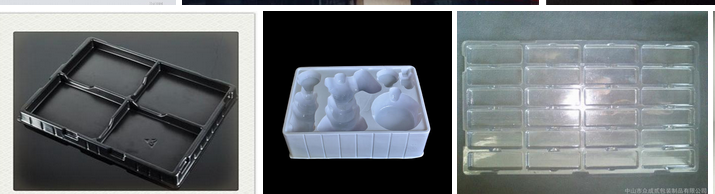

Disposable Plastic Bowl Machine Is Mainly Used to Produce Many Different Kinds Of Plastic Lids , Food Containers, Plastic Bowl, Plates , Toys Package, Food Trays , Hardward Trays, Medicine Trays and Etc.The Sheet Material Can Be HIPS, PVC, PET, PS.Custom Mould Is Welcomed.

Our Service

Disposable plastic cup bowl tray thermoforming machine

1 year machine quality warranty

24 hours online technical support, and online presale guide.

Oversea technician service is available, which will ensure you trouble free.

Welcome to contact us whenever you need us.

we are ready to offer you the best quality, best price and best service machinery for you!
