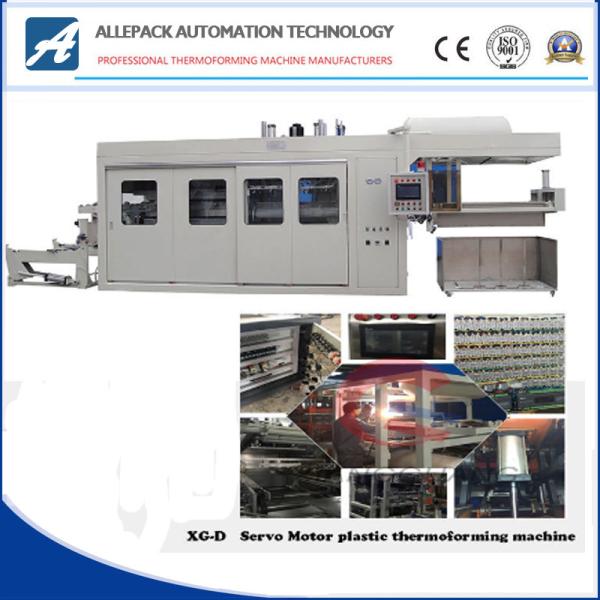

Automatic Thermoforming Machine Servo Motor Driver System
1200*750mm
Servo motor driver system automatic plastic thermoforming
technology machine,XG-D thermoforming machine adopts the most
advanced plastic vacuum thermoforming technology. Automatic
operations allow for less labor intensive work flow while producing
consistent product. Combining heating, forming& trimming all into a
single unit. AC driven Servo Motor serves purpose for environmental
regulations,low maintenance operation,and producing precision final
product. Operation is controlled by PLC advanced intelligence
computer which enables the ease of operation,employee
safety&maximum production output.
Technical parameters
| Power supply | 3 phase380V/50HZ |
| Max. Forming Area | 750*1220mm |
| Material width | 550-750mm Adjustable | |
| Forming Length | 300-1220mm Adjustable | |
| Max. Forming Depth | 160mm |
| Capacity (XG-D) | 10-20 cycles /Minute |
| Suitable Material | PP PS PET PVC Etc. |
| Air pressure | 0.6-0.8Mpa |
| Total Power | 90kw |
| Actual electrical consumption | 20-30kw/hour |
| PLC | Delta(Taiwan) |
| PLC touch Screen | Delta(Taiwan) |
| Servo Motor | Delta (Taiwan) |
| Temperature control module | Omron (Japan) |
| Camshaft bearings | NSK (Japan) |
| Frequency converter | YASKAWA (Japan) |
| Relay | IDEC (Japan) |
| Contactor | Japanese FUJI |
| Air Switch | Delixi from Germany |
| XG-40T Hydraulic Cutting Machine |
| Model | XG-40T |
| Motor power | 5.5kw |
| Cutting force | 40 tons |
| Cutting area | 610x1200mm |
| Motor brand | Delta |
| |
| Water chiller | |
| Power | 3HP |
|
| Screw Air Compressor |
| Composition | 15kw air compressor + dryer + tank |
| Power | 15KW |
| Type | Screw air compressor |
| Usage | Air supply |
Application:
XG-D series is suitable for forming sheet materials such as
PP,BOPS,HIPS,PS,PVC,PET,PLA.The machine is wildely used in the
production of tray of Microwave Oven, disposable snack box, trays
for seafood and moon cakes, chocolate boxes, bowl &cup covers,
flowerpot, daily blister packages,pharmaceutical blister packaging
and all kinds of electronic blister packaging, sealed package of
toys, hardware, cosmetics, electronic products (batteries,
electronic components and so on), foodstuff (fruits pallets, snack
boxes, biscuit boxes, food dishes, trays etc.).
