    Multi Station Automatic Thermoforming Machine For Making Take Away Food Container

    Ask Lasest Price
    Brand Name : ALLEPACK
    Model Number : XG-A
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T,L/C
    Supply Ability : USD140000/Set
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Multi Station Automatic Thermoforming Machine For Making Take Away Food Container


    Multi Station Automatic Thermoforming Machine For Making Take Away Food Container

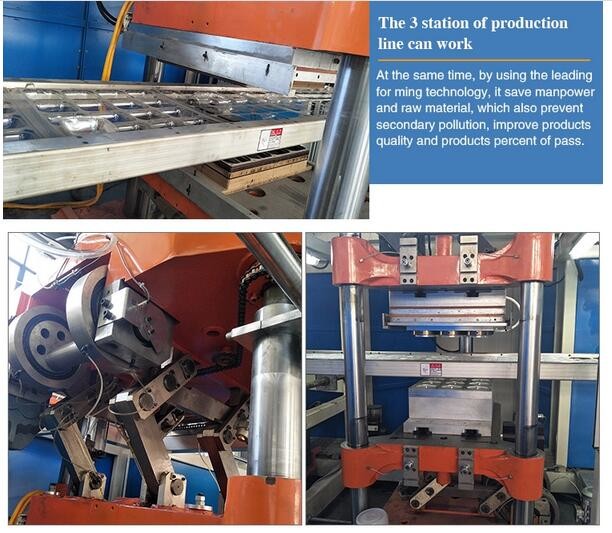

    Multi station Thermoforming Machinery for Making Take Away Food Container are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.


    Multi Station Automatic Thermoforming Machine For Making Take Away Food Container


    Technical parameters


    ModelXG-A-3
    Power supply380V 50/60Hz
    Total Power160 kw
    Actual electrical consumption20-60kw/H
    Heating Oven with preheatingLength of 1800mm,width of 800mm
    Suitable sheet width350-800mm
    Max forming area600*760mm
    Min. forming area350*410mm
    Max forming depth150mm
    Maximum cutting force100Ton
    Output capacity10-35cycles/min
    Forming mold stroke2x150mm
    Cutting mold stroke2x150mm
    Parallel precision ofcutting table±0.02MM
    Precision of sheet pulling±0.05MM
    Cutting accuracy±0.05MM
    Suitable materialPP PE PVC PS PETPS Foam(biodegraded material)etc.
    Product thickness0.15-2.0mm
    Dimension11000*2200*2500mm
    Weight

    12Tons without mold


    Packing and shipping:


    Application:

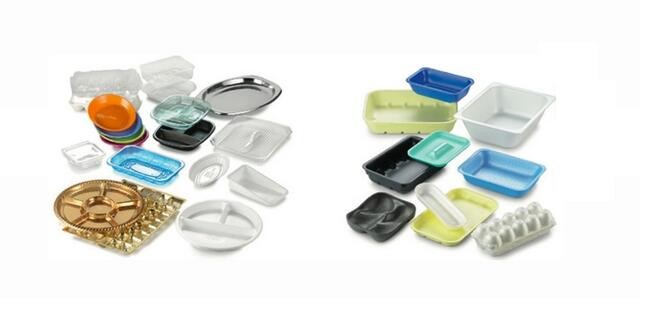

    This thermoforming machine used for producting high demand of disposable fresh/fast food,fruit plastic cups,boxex,plates,container,and pharmaceutical,wine,electrical blister packaging,PP,PS,PET,PVC,OPS plastic sheet etc.


    Multi Station Automatic Thermoforming Machine For Making Take Away Food Container
